RED RAPTOR-X 8K VV
RAPTOR-X TECH SPECS 8K VV
RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
Effective Pixels: 8192 x 4320
Sensor size: 40.96mm x 21.60mm (Diagonal: 46.31mm)
Dynamic Range: 17+ stops
120 fps at 8K 17:9, 150 fps at 8K 2.4:1
140 fps at 7K 17:9, 175 fps at 7K 2.4:1
160 fps at 6K 17:9, 240 fps at 6K 2.4:1
192 fps at 5K 17:9, 300 fps at 5K 2.4:1
240 fps at 4K 17:9, 150 fps at 4K 2.4:1
320 fps at 3K 17:9, 150 fps at 3K 2.4:1
Apple ProRes & R3D
480 fps at 2K 17:9, 600 fps at 2K 2.4:1

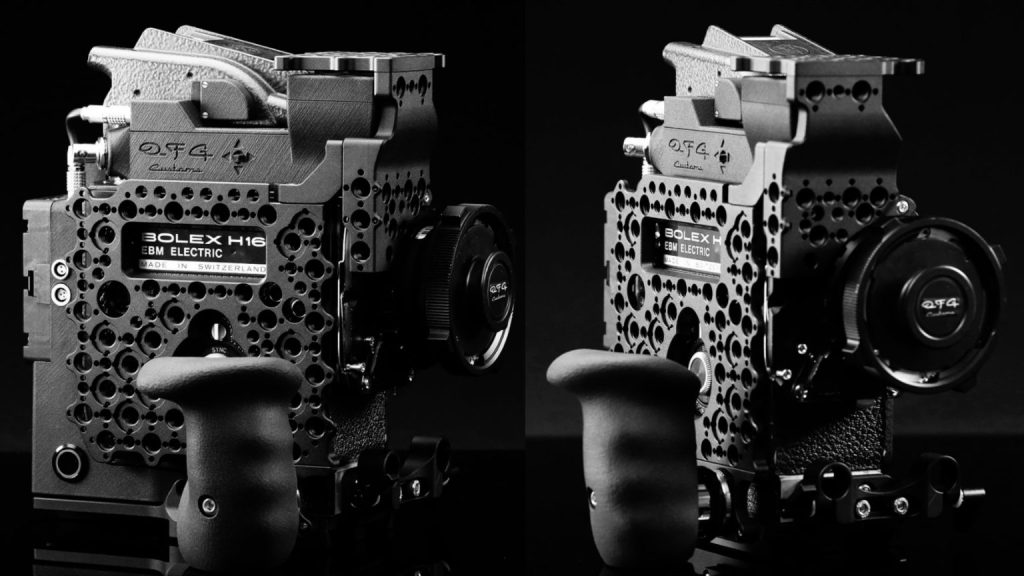

BOLEX H16 EBM OFG
BOLEX S16 OFG TECH SPECS
Custom V-Mount Battery
3-Pin Fischer, 2-Pin LEMO, 2 D-Tap ports
Crystal Sync: 23.98 fps, 24 fps, 25 fps
OFG’s Custom Cage, Base Plate & 15mm LWS rod bracket
EVF Kinefinity EAGLE SDI e-Viewfinder Pro Remote RS capable (compatible ARRI, Tilta, etc.)
RS Hand Grip PL Mount
SPEED 10, 18, 24, 25, 50 fps
Small & Light (half the weight of an ARRI SR3)
RED MONSTRO 8K VV
RED MONSTRO 8K VV TECH SPECS
Effective Pixels: 8192 x 4320
Sensor size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
Dynamic Range: 17+ stops
60 fps at 8K Full Format (8192 x 4320), 75 fps at 8K 2.4:1 (8192 x 3456)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
Apple ProRes + R3D
RED KOMODO-X 6K S35
KOMODO-X TECH SPECS
S35 6K
Effective Pixels: 8192 x 4320
Sensor size: 27.03mm x 14.26mm (Diagonal: 30.56mm)
KOMODO-X™ 19.9MP Super 35mm Global Shutter CMOS
Dynamic Range: 16.5+ stops
80 fps at 6K 17:9 (6144 x 3240)
Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps
Apple ProRes & R3D

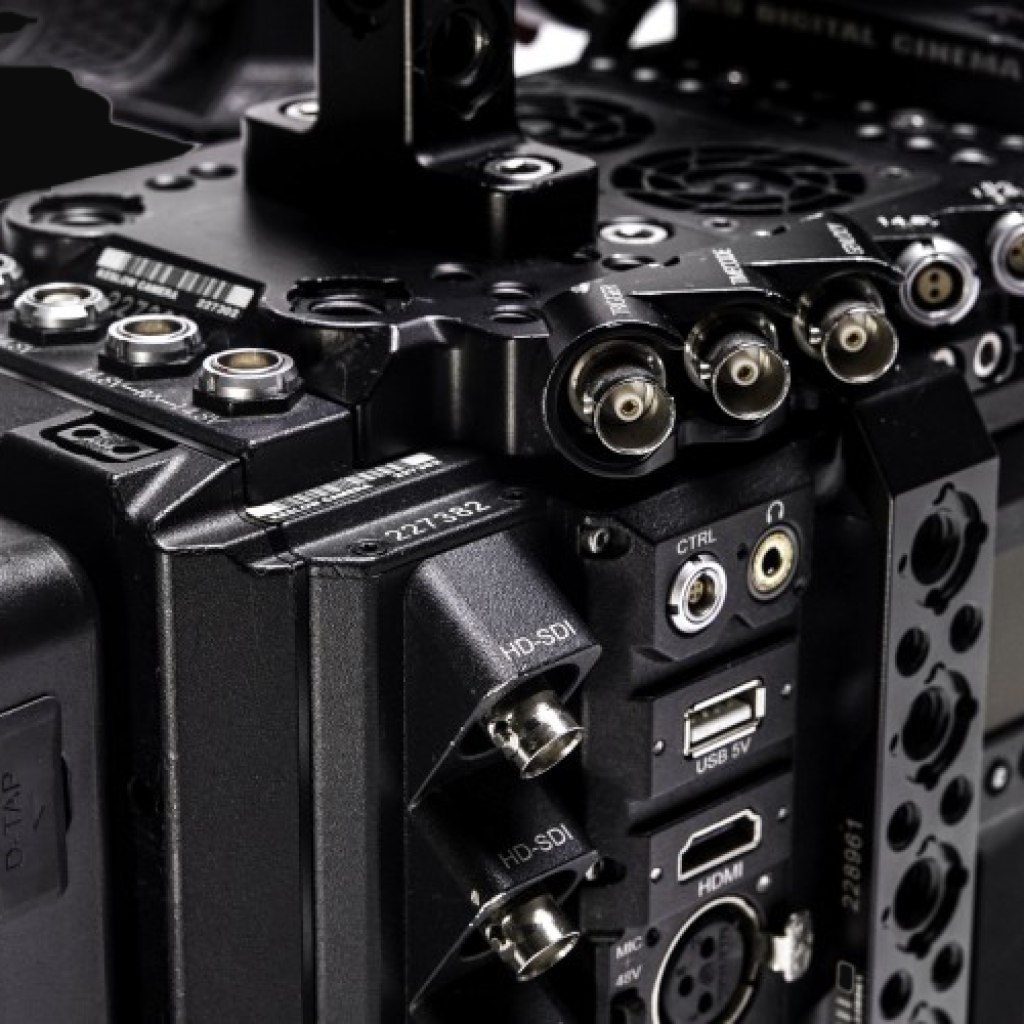

GEMINI 5K S35
RED GEMINI TECH SPECS
S35 5K
Sensor size :30.72 mm x 18.0 mm (Diagonal: 35.61 mm)
GEMINI 15.4 Megapixel Dual Sensitivity CMOS
16.5+ stops
75 fps at 5K Full Height 1.7:1 (5120 x 3000)
Apple ProRes + R3D

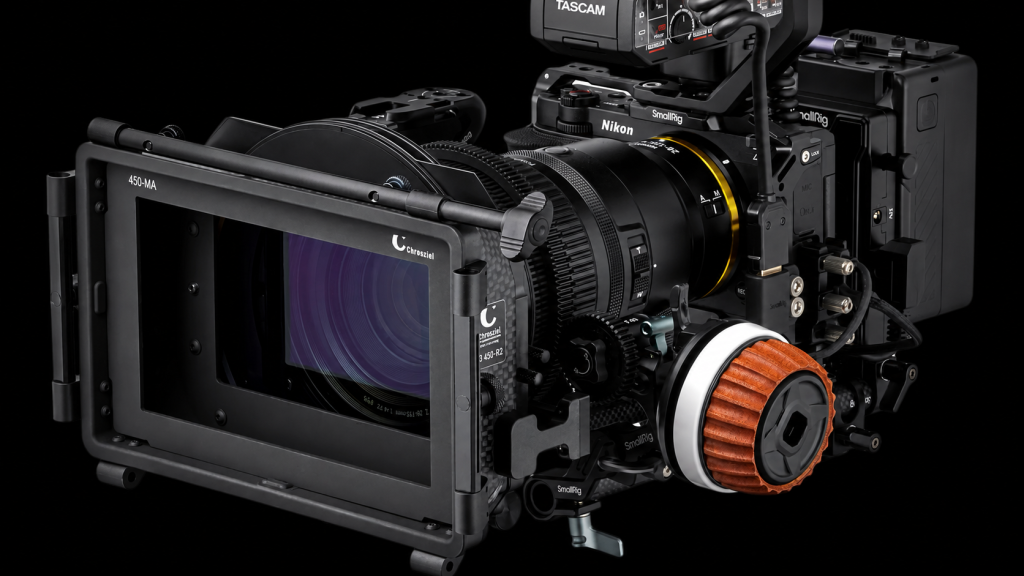

NIKON-ZR 6K
NIKON – RED ZR 6K TECH SPECS
Sensor: 24.5MP Full Frame CMOS (Partially Stacked)
Processor: EXPEED 7
Dynamic Range: 15+ stops
Dual Base ISO: 800 / 6400
Frame Rates:
6K: up to 60 fps
4K: up to 120 fps
2K: up to 240 fps
Codecs: N-RAW / ProRes RAW / ProRes 422 HQ / R3D NE / H.265 / H.264

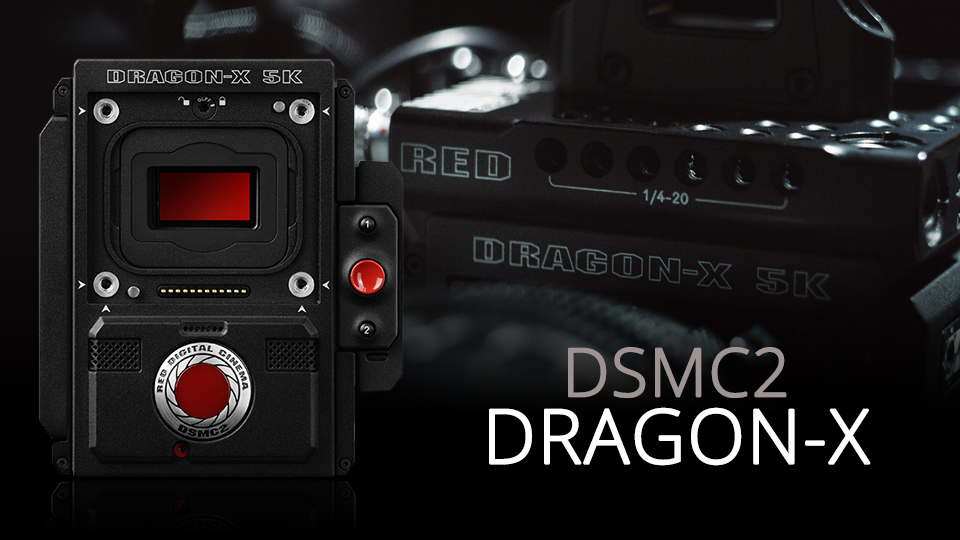

RED DRAGON-W 5K
RED DRAGON 5K TECH SPECS
S35 5K
Sensor size: 25.6 mm x 13.5 mm (Diagonal: 28.9 mm)
Effective Pixels: 5120 x 2700
GEMINI 15.4 Megapixel Dual Sensitivity CMOS
16.5+ stops
50 fps at 5K Full Format (5120 x 2700), 60 fps at 5K 2.4:1 1.7:1 (5120 x 2160)
Apple ProRes + R3D
